1.Introduction

In China, biofertilizers/microbial fertilizers are defined as a type of fertilizer that contains living microbial organisms with specific functions (Chinese Agricultural Standard NYT 1113-2006). With overall usage on 2 million hectares, biofertilizers now amount to nearly 10 million tons in volume and 20 billion Yuan in value annually. Since the implementation of registration management on biofertilizer in 1996, the regulatory framework for biofertilizers has been basically formed, consisting of a primary overarching (horizontal) standard, microbial species safety standard, product (vertical) standard, method and technical specification. This AgroPedia aims to clarify the difference in product classification through the lens of the most recent regulatory updates and also explain the requirements on safety evaluation, as well as analyzing trends in product registration and regulatory compliance on biofertilizers in China.

2.Classification, Definition and Mandatory Generic Name of Commercial Fertilizers in China

In 2016, China renewed the national standard on terminology of fertilizer, “GBT 6274-2016 Fertilizers and Soil Conditioners” and issued a national standard on fertilizer classification, “GBT 32741-2016 Fertilizers and Soil Conditioner-Classification”. Most of the contents are transformed from ISO standards and varies slightly in certain product classification. Although fertilizer and soil conditioner differ in claims of main efficacy and nutrient content, both categories can be divided into inorganic, organic and semi-organic types. Microbial fertilizers and subject to further sub-division according to the nature and complexity of nutrient content. Apart from common chemical fertilizers long-term used fertilizers and/or fertilizers established with national or industrial product executive standard exempted from registration and compound fertilizer, formula fertilizers targeting specific region or crop, refined organic fertilizers and seedbed soil conditioner that registered with provincial agricultural department, other products are mandatorily registered with the MoA under designated generic names. Below table summarizes the classification, definition, label claim of products and generic names eligible for registration.

large

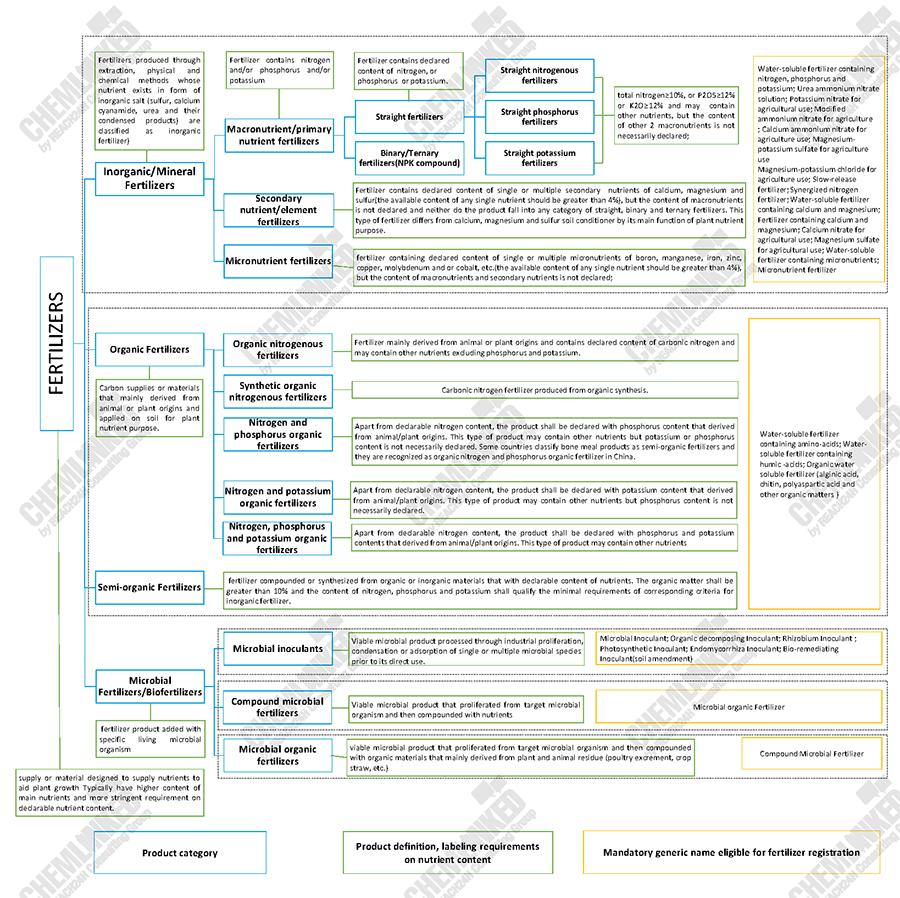

Fig1.-Classification, Definition and Mandatory Generic Name of Fertilizers in China

large

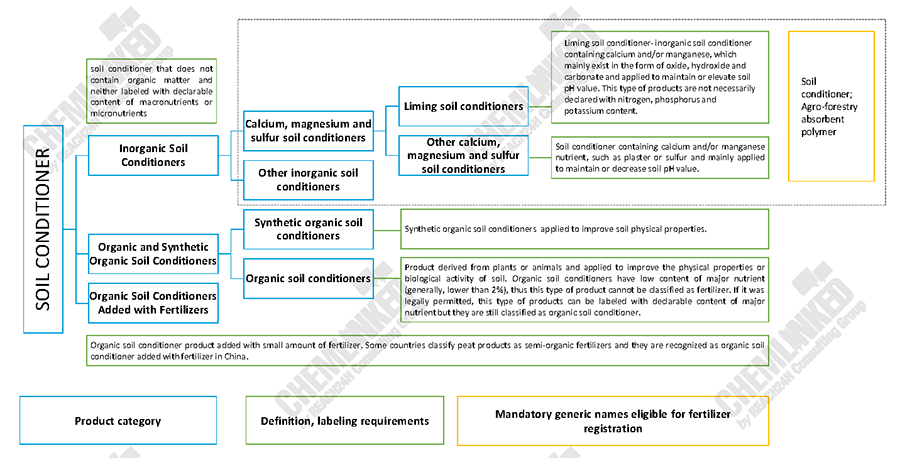

Fig.2-Classification, Definition and Mandatory Generic Name of Soil Conditioners in China

From the above tables we can conclude that fertilizers categories do not always correspond to mandatory generic names, because the final commercial product also differs in raw materials, processing technology, physical state, solubility, application method, releasing rate, encapsulation status and other characteristics and these variations differentially impact agricultural production and environment.

To ensure product quality, China has accelerated the selection of technical parameters and development of testing methods and compiled them into a product executive standards as national or industrial standards. Only fertilizers which qualify based on the technical criteria of the standard can be registered under the corresponding generic name.

For example, in some countries some humic acid and amino acid fertilizers are recognized and marketed as biostimulants, but these fertilizers are usually registered as water soluble fertilizer containing humic acid and amono acid in China. The products must qualify based on criteria specified in two agriculture compulsory standard, the “NY-1106-2010 Water Soluble Fertilizers Containing Humic-acids” and the “NY 1429-2010 Water-soluble fertilizers containing amino-acids”. Otherwise, they can only be registered under another generic name if they meet the corresponding criteria on function claim, declarable nutrient content and other technical requirements.

Other biostimulants such as alginic acid, chitosan, glutamic acid and polyaspartic acid which do not have a compulsory product standard are also mostly registered as water soluble organic fertilizer. Fertilizers using these new ingredients are reviewed by the National Expert Committee on Fertilizer Registration on a case-by-case basis. Producers have to draft enterprise standard and the Committee will censor the raw material, production technology and the consistency between test results and technical indicators, as well as the technological level of the producers. Furthermore, special efficacy tests would be additional required for certain generic names. Supplemented explanation and requirement on the generic names of chemical fertilizers and biofertilizers are provided in MoA Office Letter 12 of 2010, the “Agreed Matters Decided at the National Expert Committee on Fertilizer Registration”

3.Microbial Strain/Species and Product Safety Evaluation

By the end of 2017, over 4,600 biofertilizers using 151 functional microbial species/strains were registered under only 8 generic names by over 1,000 companies. Compared with the procedures and data requirements of chemical and/or organic fertilizers, biofertilizers are subject to stringent safety evaluation including microbial species/strain identification and toxicological tests of functional microorganism and final product.

3.1 Strain/species Identification

Prior to placement on the market, the strain/species of the functional microorganisms used in all microbial inoculants, compounded microbial fertilizers and microbial organic fertilizers should be identified, requiring an identification report issued by a CMA accredited lab or national authoritative institution. If the functional microorganism was sourced from a national culture collection institution and a safety identification report from this institution was available, the identification test can be exempted.

3.2 Categorized Safety Evaluation

Toxicological test reports will be required for both functional microorganism and final product. The study scope of microorganism increases with the strain class, which is categorized into 4 groups in accordance with the “NY1109-2006 General Biosafety Standard for Microbial Fertilizers”:

• Category I (A.1): Exempted from all toxicological test;

• Category II (A.2): Required for acute toxicity test (oral test);

• Category III (A.3): Required for acute toxicity test and pathogenic test (oral test, eye irritation, irritation to damaged skin, hemolysis, sensitivity to antibiotics and intraperitoneal injection)

• Category IV (A.4): Prohibited from fertilizer use;

For new microbial strains not yet included into any of the above categories, the test scope will be proposed by the registration technical committee and defined by the MoA case-by-case. Oral toxicity test will be required for the final products of compounded microbial fertilizers, microbial organic fertilizers, liquid microbial inoculants and solid organic matter-decomposing inoculants.  NY 1109 specifies mandatory toxicological indicators and only microbial strain qualifies the criteria can be utilized for biofertilizer production (Biofertilizer producers usually source only small number of seed strain and culture them an unlimited number of times. This is very distinct from chemical fertilizer/pesticide where a producer must source the active ingredient for each production of their final product. From my exploration of the regulation, China’s authority believes the even the same strain from different origins may have different toxicity. This concept is very similar to pesticide technical grade active ingredients produced by different producers, which may have different toxicological rating). The microorganism report should be issued by a national level institution and the final product report can be issued by a CMA accredited lab or other labs designated by health authorities at provincial level.

4.Multi-tier Standard System

Apart from toxicological evaluation on strain/species and product, China has compiled a series of national/standards on strain safety, product specification, terminology, labeling, testing method, technical specifications for inspection and evaluation. These standards form a multi-tier system:

In 2000 and 2002 China issued a series of agricultural standards of 6 inoculants with specific function claims: organic decomposing, rhizobium, photosynthetic, silicate bacteria, phosphate bacteria, rhizobium and, azotobacter fertilizers. These standards specified the strain/strain characteristics and identification of corresponding function microorganisms, quality indicators, limits of harmful substances and microbial contaminants, testing methods and inspection procedures.

Inoculants using microbial strains with the characteristics listed above have been registered using generic names. In 2006, China issued national standard GB 20287-2006 which integrates the technical specifications universally applicable to all microbial inoculants and organic decomposing inoculants. If applicants want to register a microbial inoculant under another generic name with functional claims such as organic decomposing, bio-remediating (soil amendment), an additional efficacy trial on crop or target material will be required. For example, bacillus subtilis was registered as organic decomposing inoculant in 2007, but it was also frequently registered as microbial inoculant in recent years.

The former requires an efficacy trail of decomposition effect on crop straw or livestock manure but the latter requires demonstration of nutrient supply/improvement of certain agricultural crops. To reduce experimentation expenses and registration uncertainty, some bio-remediating (soil amendment) microbial products are also registered as a microbial inoculant and marketed only with a brand name which has bio-remediating claim/implication.

In fact, these products are not officially and legally recognized as bio-remediating and the differences can be reflected on applicable target/scope, which should be mandatorily included on product label. The applicable target/scope for microbial inoculant is usually a crop grown in soil which is polluted with certain contaminants such as pesticides, hazardous chemicals or industrial wastes. Up to now, microbial inoculant accounts for almost 40% of the registrations, followed by microbial organic fertilizer (31%) and compound microbial fertilizer (23%).

large

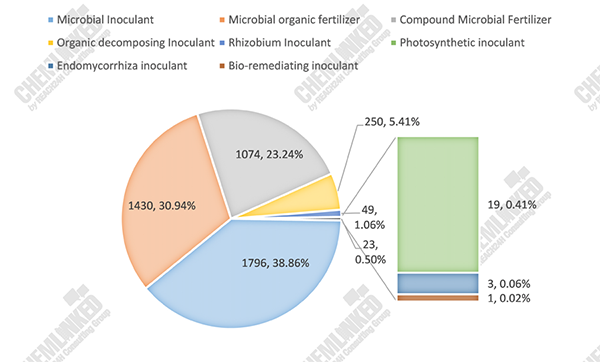

Fig3.-Category Percentages of Biofertilizers Registered in China

5.Trend Analysis

The numbers of newly approved microbial inoculant and microbial organic fertilizer more than trebled from 2015 to 2017 and new approval of compounded fertilizers also doubled. Bacillus subtilis, Bacillus licheniformis and Paenibacillus mucilaginosus are the top 3 microbial strains used in biofertilizers, ranging from single-strain product or multiple-strain in different combinations, of which 50% are registered after 2012. 33 new stains have been approved since 2015.

large

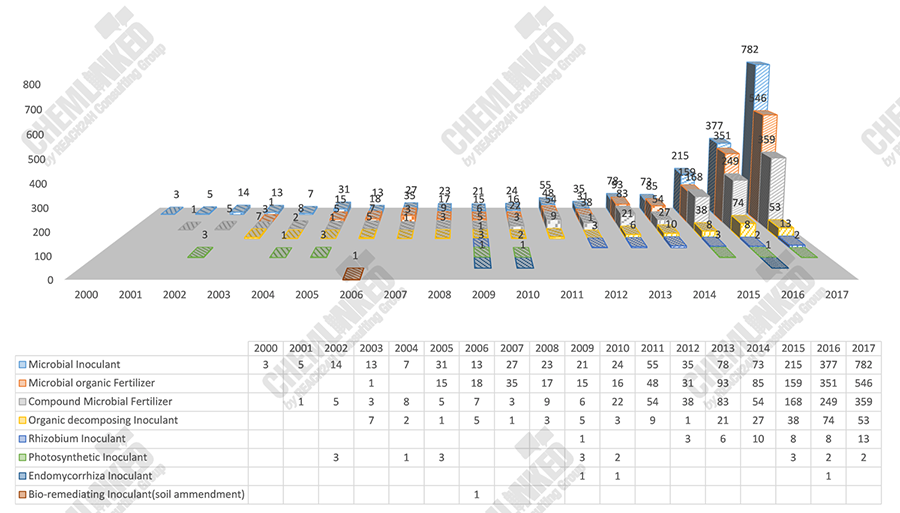

Fig4.-Annual Change in the Number of Biofertilizer Categories Registered in China

large

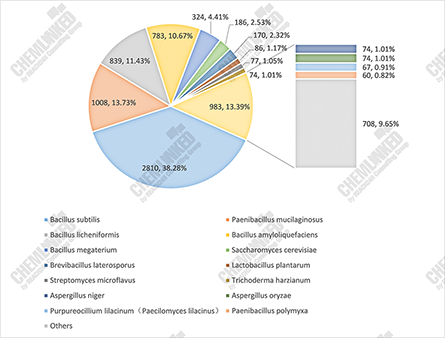

Fig.5- Strain Percentages of Biofertilizers Registered in China

large

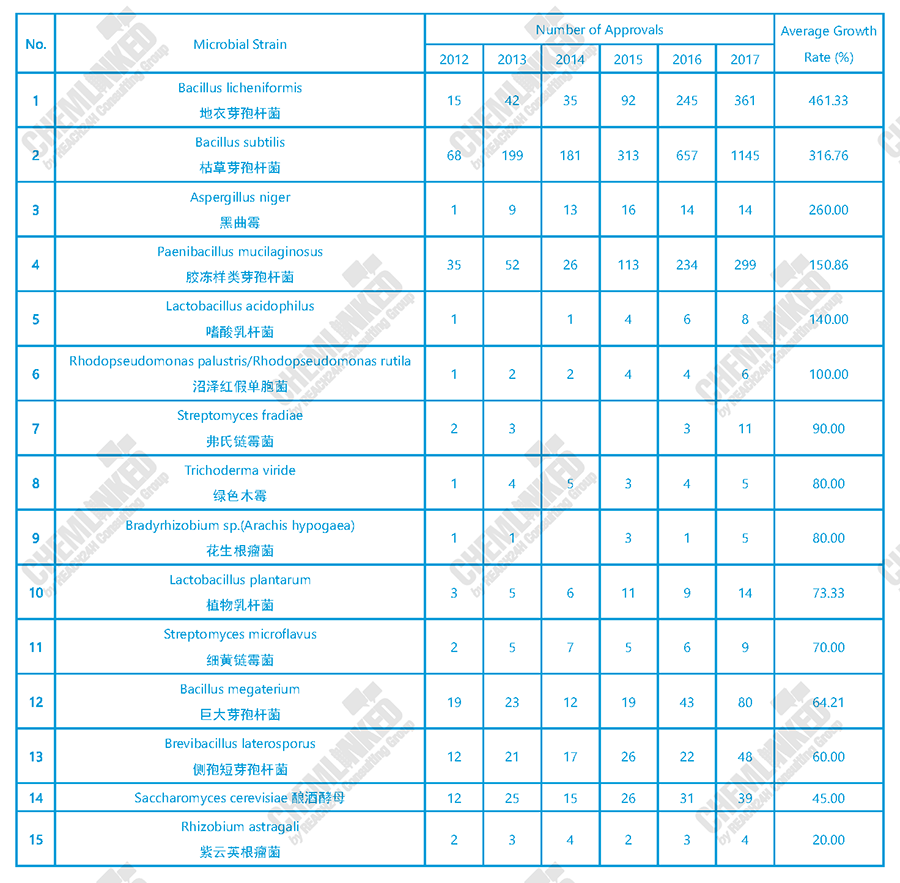

Fig6.-Top 15 Grown Microbial Stains in Number of Biofertilizers Approved for Registration in Recent 5 Years

large

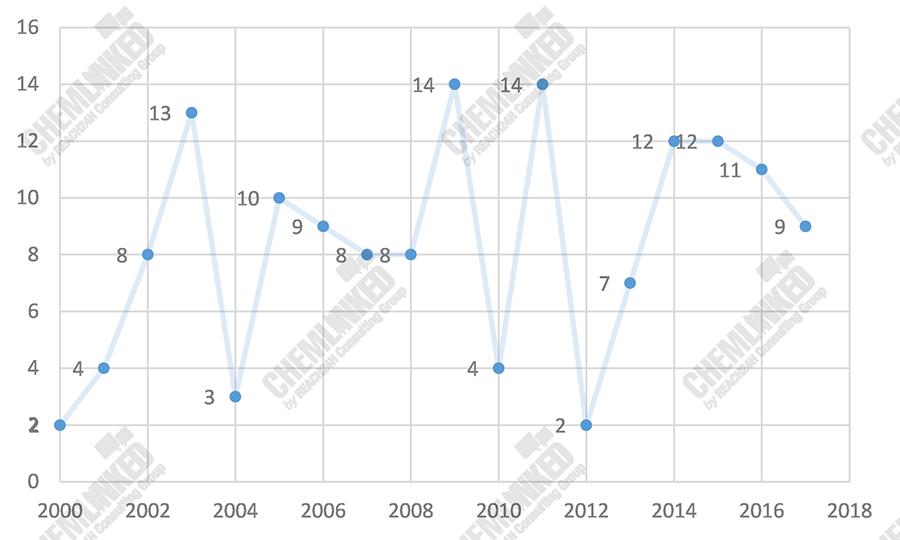

Fig.7-Annual Change in Number of New Microbial Strain of Biofertilizers Approved in China

large

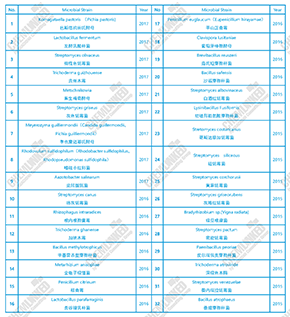

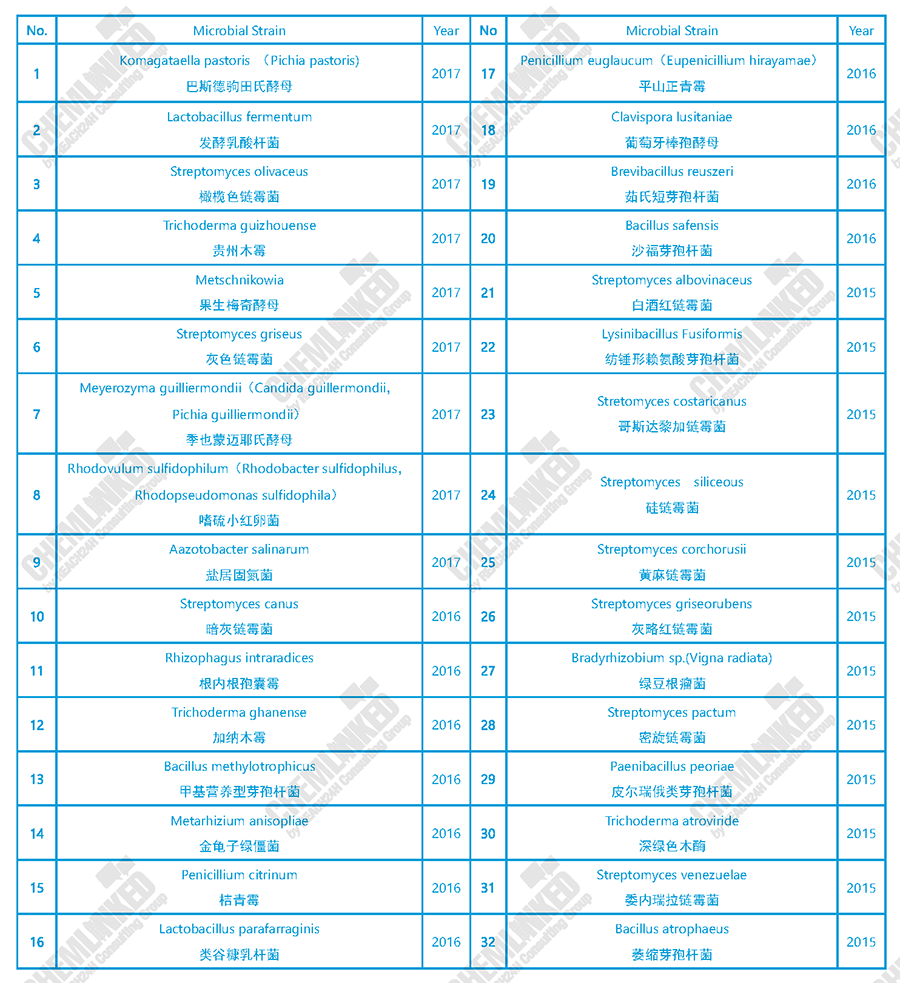

Fig.8-New Microbial Stains Approved under Chinese Fertilizer Registration in Recent 3 Years

6.Forecast

Comparing with chemical and traditional organic fertilizers, the functions of biofertilizers are based on the inherent characteristics of the microorganisms present. Biofertilizers are affected by viable number, metabolism, temperature, soil acidity and nutritional condition, interaction of microbial species, etc. Thus the short term ROI (Return-Over-Investment) of biofertilizers is inferior to chemical fertilizers and traditional organic fertilizers. Currently in China, the sector accounts for 7% of fertilizer application and accounts for a volume of 100 million tons per year.

China now realizes the consequence of excessive use of pesticides and chemical fertilizers and an “Action Plan for Zero Growth in the Application of Pesticide and Chemical Fertilizers” was launched in 2015, offering great opportunities for bio fertilizers. In the “National Development Plan for Bio industry”, biofertilizer has been included into the development action plan for agricultural biological product. Biofertilizer with activities including drought and disease-resistance, nutrient activating, azotification, straw decomposing, herbicide-degradation and soil improvement ability will be prioritized.

Indeed, biofertilizers have witnessed steady growth in numbers of product registration and new microbial strains, but overall the product varieties are lack diversity. 90% of the registrations are biofertilizers using bacillus subtilis, Bacillus licheniformis and Bacillus megaterium. Likewise, Bacillus thuringiensis has been registered as pesticide in hundreds of plant protection products due to its broad spectrum of activity against various pests. The number of Bacillus thuringiensis registered as microbial fertilizers has increased from 1 in 2015 to 23 in 2017. Future growth will be somewhat curtailed due to regulatory requirements mandating extra safety evaluation tests to verify strain safety. This regulation was drafted by the Center for Quality Supervision and Testing of Microbial Fertilizers and Edible Fungus (a subordinate institution for technical assistance in bio fertilizer registration) and publicly consulted in 2016. This change effectively revised “NY1109-2006 General Biosafety Standard for Microbial Fertilizers”. The scope of permitted microbes increased from 122 strains in NY1109-2006 to 208 strains and 9 strains have been reclassified:

• Burkholderia fungorum, Nocardia sp., Nocardiopsis sp. will be moved from Category II to Category III;

• Bacillus thuringiensis will be adjusted from Category I to Category II;

• Bacillus coagulans, Bacillus pumilus, Geobacillus Stearothermophilus and Streptomyces Fradiae will be downgraded from Category II to category I;

• Penicillium citrinum will be rerated from Category II to Category IV;

• Hemolysis test would be required for all sporogenic strains.

China’s safety evaluation and production management of microbial strains is more or less complete. In contrast quality control and efficacy evaluation of special function products is inadequate. The guideline for efficacy evaluation on biofertilizers, "NYT 1536-2207 Technical Regulation for Field Experiment of Microbial Fertilizer and Directory of Effect Evaluation" was initially published in 2007. This guideline offered some general principles in regards to yield increase, crop quality improvement, etc., which was mostly based on principles designed to manage traditional fertilizers. Concepts on biostimulant, nutrient-uptake improvement, stress-resistance inducing, organic material-decomposing, soil bio-remediation were not yet formed at that time. The first evaluation guideline for special function biofertilizer, "NY/T 2722-2015 Technical Specification for the Decomposition Effect Evaluation of Straw-decomposing Inoculant" , was published in 2015. In regards to biofertilizers with other functions, there are only two options:

• Registering with a generic name without function claim and market-promoted them under brand name,

• Gather efficacy data/test report and discussed during a biannual meeting on a case-by-case basis.

The first option can be regarded as a faster route to evaluate products until China adopts more stringent nomenclature and labeling regulations. The second option is still legal but there is a great degree of uncertainty surrounding this evaluation system until China clarifies criteria for these special function products.
